Piezoelectric Force Sensor - Test Bench

• Introduction
• Change of Stiffness due to Sensors stack being open/closed circuit
  • Introduction
  • Load Data
  • Transfer Functions
• Effect of a Resistor in Parallel with the Stack Sensor
  • Introduction
  • Excitation steps and measured generated voltage
  • Estimation of the voltage offset and discharge time constant
  • Estimation of the ADC input impedance
  • Explanation of the Voltage offset
  • Effect of an additional Parallel Resistor
  • Obtained voltage offset and time constant with the added resistor
• Generated Number of Charge / Voltage
  • Introduction
  • Data Loading
  • Excitation signal and corresponding displacement
  • Generated Voltage
  • Generated Charge
  • Generated Voltage/Charge as a function of the displacement

Introduction   ignore

In this document is studied how a piezoelectric stack can be used to measured the force.

It is divided in the following sections:

• Section sec:open_closed_circuit: the effect of the input impedance of the electronics connected to the force sensor stack on the stiffness of the stack is studied
• Section sec:parallel_resistor: the effect of a resistor in parallel with the sensor stack is studied
• Section sec:charge_voltage_estimation: the voltage / number of charge generated by the sensor as a function of the displacement is measured

Change of Stiffness due to Sensors stack being open/closed circuit

<<sec:open_closed_circuit>>

Introduction   ignore

The experimental Setup is schematically represented in Figure fig:exp_setup_schematic.

The dynamics from the voltage $u$ used to drive the actuator stacks to the encoder displacement $d_e$ is identified when the switch connected to the sensor stack is either open or closed.

Schematic of the Experiment

When the switch is opened, this correspond of having a measurement electronics with an high input impedance such as a voltage amplifier. When the switch is closed, this correspond of having a measurement electronics with an small input impedance such as a charge amplifier.

We wish here to see how the system dynamics is changing in the two extreme cases.

The equipment used in the test bench are:

• Renishaw Resolution Encoder with 1nm resolution (doc)
• Cedrat Amplified Piezoelectric Actuator APA95ML (doc)
• Voltage Amplifier LA75B (doc)
• Speedgoat IO131 with 16bits ADC and DAC (doc)

Load Data

  oc = load('identification_open_circuit.mat', 't', 'encoder', 'u');
  sc = load('identification_short_circuit.mat', 't', 'encoder', 'u');

Transfer Functions

  Ts = 1e-4; % Sampling Time [s]
  win = hann(ceil(10/Ts));

  [tf_oc_est, f] = tfestimate(oc.u, oc.encoder, win, [], [], 1/Ts);
  [co_oc_est, ~] = mscohere(  oc.u, oc.encoder, win, [], [], 1/Ts);

  [tf_sc_est, ~] = tfestimate(sc.u, sc.encoder, win, [], [], 1/Ts);
  [co_sc_est, ~] = mscohere(  sc.u, sc.encoder, win, [], [], 1/Ts);

Zoom on the change of resonance

The change of resonance frequency / stiffness is very small and is not important here.

Effect of a Resistor in Parallel with the Stack Sensor

<<sec:parallel_resistor>>

Introduction   ignore

The setup is shown in Figure fig:force_sensor_setup where two stacks are used as actuator (in parallel) and one stack is used as sensor. The voltage amplifier used has a gain of 20 [V/V] (Cedrat LA75B).

Schematic of the setup

The equipment used in the test bench are:

• Renishaw Resolution Encoder with 1nm resolution (doc)
• Cedrat Amplified Piezoelectric Actuator APA95ML (doc)
• Voltage Amplifier LA75B (doc)
• Speedgoat IO131 with 16bits ADC and DAC (doc)

Excitation steps and measured generated voltage

The measured data is loaded.

  load('force_sensor_steps.mat', 't', 'encoder', 'u', 'v');

The excitation signal (steps) and measured voltage across the sensor stack are shown in Figure fig:force_sen_steps_time_domain.

Time domain signal during the 3 actuator voltage steps

Estimation of the voltage offset and discharge time constant

The measured voltage shows an exponential decay which indicates that the charge across the capacitor formed by the stack is discharging into a resistor. This corresponds to an RC circuit with a time constant $\tau = RC$.

In order to estimate the time domain, we fit the data with an exponential. The fit function is:

  f = @(b,x) b(1).*exp(b(2).*x) + b(3);

Three steps are performed at the following time intervals:

  t_s = [ 2.5, 23;
         23.8, 35;
         35.8, 50];

We are interested by the b(2) term, which is the time constant of the exponential.

  tau = zeros(size(t_s, 1),1);
  V0  = zeros(size(t_s, 1),1);

  for t_i = 1:size(t_s, 1)
      t_cur = t(t_s(t_i, 1) < t & t < t_s(t_i, 2));
      t_cur = t_cur - t_cur(1);
      y_cur = v(t_s(t_i, 1) < t & t < t_s(t_i, 2));

      nrmrsd = @(b) norm(y_cur - f(b,t_cur)); % Residual Norm Cost Function
      B0 = [0.5, -0.15, 2.2];                        % Choose Appropriate Initial Estimates
      [B,rnrm] = fminsearch(nrmrsd, B0);     % Estimate Parameters ‘B’

      tau(t_i) = 1/B(2);
      V0(t_i)  = B(3);
  end

The obtained values are shown below.

$tau$ [s]	$V_0$ [V]
6.47	2.26
6.76	2.26
6.49	2.25

Estimation of the ADC input impedance

With the capacitance being $C = 4.4 \mu F$, the internal impedance of the Speedgoat ADC can be computed as follows:

  Cp = 4.4e-6; % [F]
  Rin = abs(mean(tau))/Cp;

1494100.0

The input impedance of the Speedgoat's ADC should then be close to $1.5\,M\Omega$ (specified at $1\,M\Omega$).

Explanation of the Voltage offset

As shown in Figure fig:force_sen_steps_time_domain, the voltage across the Piezoelectric sensor stack shows a constant voltage offset.

We can explain this offset by looking at the electrical model shown in Figure fig:force_sensor_model_electronics_without_R (taken from cite:reza06_piezoel_trans_vibrat_contr_dampin).

The differential amplifier in the Speedgoat has some input bias current $i_n$ that produces a voltage offset across its own internal resistance. Note that the impedance of the piezoelectric stack is much larger that that at DC.

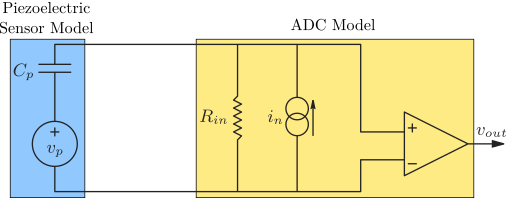

Model of a piezoelectric transducer (left) and instrumentation amplifier (right)

The estimated input bias current is then:

  in = mean(V0)/Rin;

1.5119e-06

Effect of an additional Parallel Resistor

Be looking at Figure fig:force_sensor_model_electronics_without_R, we can see that an additional resistor in parallel with $R_{in}$ would have two effects:

• reduce the input voltage offset \[ V_{off} = \frac{R_a R_{in}}{R_a + R_{in}} i_n \]
• increase the high pass corner frequency $f_c$ \[ C_p \frac{R_{in}R_a}{R_{in} + R_a} = \tau_c = \frac{1}{f_c} \] \[ R_a = \frac{R_i}{f_c C_p R_i - 1} \]

If we allow the high pass corner frequency to be equals to 3Hz:

  fc = 3;
  Ra = Rin/(fc*Cp*Rin - 1);

79804

With this parallel resistance value, the voltage offset would be:

  V_offset = Ra*Rin/(Ra + Rin) * in;

0.11454

Which is much more acceptable.

A resistor $R_p \approx 100\,k\Omega$ is then added in parallel with the force sensor as shown in Figure fig:force_sensor_model_electronics.

Model of a piezoelectric transducer (left) and instrumentation amplifier (right) with the additional resistor $R_p$

Obtained voltage offset and time constant with the added resistor

After the resistor is added, the same steps response is performed.

  load('force_sensor_steps_R_82k7.mat', 't', 'encoder', 'u', 'v');

The results are shown in Figure fig:force_sen_steps_time_domain_par_R.

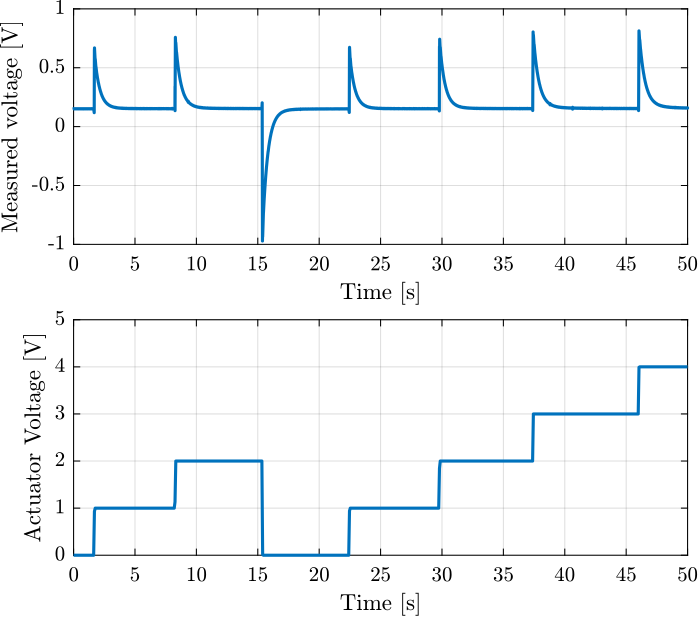

Time domain signal during the actuator voltage steps

Three steps are performed at the following time intervals:

  t_s = [1.9,  6;
         8.5, 13;
        15.5, 21;
        22.6, 26;
        30.0, 36;
        37.5, 41;
        46.2, 49.5]

The time constant and voltage offset are again estimated using a fit function.

And indeed, we obtain a much smaller offset voltage and a much faster time constant.

$tau$ [s]	$V_0$ [V]
0.43	0.15
0.45	0.16
0.43	0.15
0.43	0.15
0.45	0.15
0.46	0.16
0.48	0.16

Knowing the capacitance value, we can estimate the value of the added resistor (neglecting the input impedance of $\approx 1\,M\Omega$):

  Cp = 4.4e-6; % [F]
  Rin = abs(mean(tau))/Cp;

101200.0

And we can verify that the bias current estimation stays the same:

  in = mean(V0)/Rin;

1.5305e-06

This validates the model of the ADC and the effectiveness of the added resistor.

Generated Number of Charge / Voltage

<<sec:charge_voltage_estimation>>

Introduction   ignore

In this section, we wish to estimate the relation between the displacement performed by the stack actuator and the generated voltage/charge on the sensor stack.

Data Loading

The measured data is loaded and the first 25 seconds of data corresponding to transient data are removed.

  load('force_sensor_sin.mat', 't', 'encoder', 'u', 'v');

  u       = u(t>25);
  v       = v(t>25);
  encoder = encoder(t>25) - mean(encoder(t>25));
  t       = t(t>25);

Excitation signal and corresponding displacement

The driving voltage is a sinus at 0.5Hz centered on 3V and with an amplitude of 3V (Figure fig:force_sensor_sin_u).

Driving Voltage

The corresponding displacement as measured by the encoder is shown in Figure fig:force_sensor_sin_encoder.

The full stroke is:

  max(encoder)-min(encoder)

5.005e-05

Encoder measurement

Generated Voltage

The generated voltage by the stack is shown in Figure fig:force_sensor_sin_stack.

Voltage measured on the stack used as a sensor

Generated Charge

The capacitance of the stack is

  Cp = 4.4e-6; % [F]

The voltage and charge across a capacitor are related through the following equation:

\begin{equation} U_C = \frac{Q}{C} \end{equation}

where $U_C$ is the voltage in Volts, $Q$ the charge in Coulombs and $C$ the capacitance in Farads.

The corresponding generated charge is then shown in Figure fig:force_sensor_sin_charge.

Generated Charge

Generated Voltage/Charge as a function of the displacement

The relation between the generated voltage and the measured displacement is almost linear as shown in Figure fig:force_sensor_linear_relation.

  b1 = encoder\(v-mean(v));

Almost linear relation between the relative displacement and the generated voltage

With a 16bits ADC, the resolution will then be equals to (in [nm]):

  abs((20/2^16)/(b1/1e9))

3.9838
