Sample Stabilization for Tomography Experiments in Presence of Large Plant Uncertainty - Tikz Figures

1. Fig 1: Schematic representation of the ID31 end station
2. Fig 2: CAD View of the ID31 end station
3. Fig 3: Picture of the ID31 end station
4. Fig 4: Schematic representation of the NASS added below the sample and the control architecture used
5. Fig 5: Transfer function from a force applied by the NASS to the displacement of the sample
6. Fig 6: General control configuration applied to the end station
7. Fig 7: Bode plot of the loop gain for the control in the x direction
8. Fig 8: Positioning error of the sample in the x and y direction during the simulation of a tomography experiment
9. Fig 1: Schematic of the Tomography Experiment (Poster)

Configuration file is accessible here.

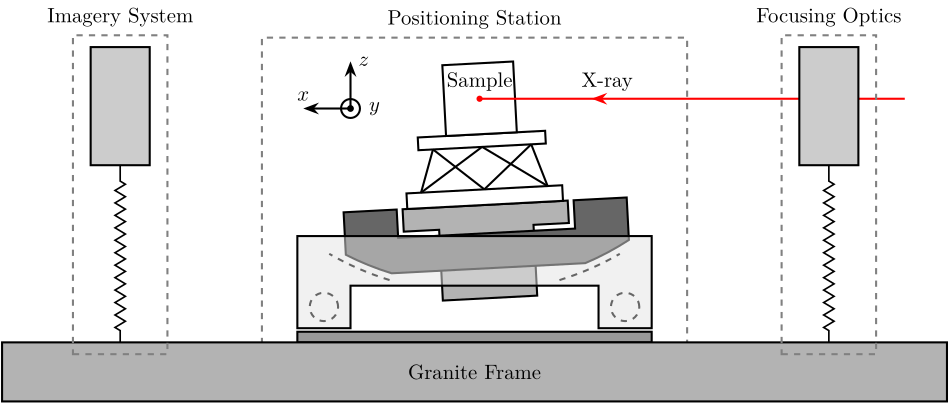

1 Fig 1: Schematic representation of the ID31 end station

Figure 1: Schematic representation of the ID31 end station (png, pdf, tex).

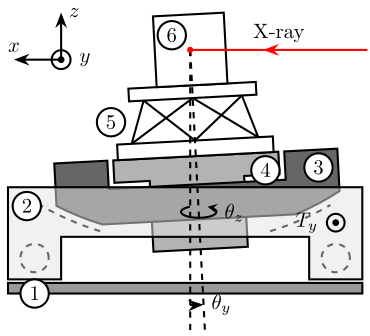

2 Fig 2: CAD View of the ID31 end station

\graphicspath{{~/Cloud/thesis/latex/img/}}
\begin{tikzpicture}
  \tikzstyle{legend}=[draw, text width=4.2cm, align=center]

  \node[inner sep=0pt, anchor=south west] (assemblage) at (0,0)
  {\includegraphics[width=0.42\textwidth]{/home/thomas/Cloud/thesis/papers/dehaeze18_sampl_stabil_for_tomog_exper/tikz/img/assemblage_img.png}};

  \coordinate[] (aheight) at (assemblage.north west);
  \coordinate[] (awidth)  at (assemblage.south east);

  \coordinate[] (xrightlabel) at (-0.2, 0);
  \coordinate[] (xleftlabel)  at ($(awidth)+(0.2, 0)$);

  % Translation Stage
  \coordinate[] (ty) at ($0.5*(aheight)+0.1*(awidth)$);
  \draw[<-] (ty) -- (ty-|xrightlabel) node[left, legend]{Translation Stage\\$\SI{-5}{m\metre} < T_y < \SI{5}{m\metre}$};

  % Sample Interface
  \coordinate[] (sampleint) at ($0.77*(aheight)+0.5*(awidth)$);
  \coordinate[] (sampleintmid) at ($(sampleint)+(-1, -0.5)$);
  \draw[<-] (sampleint) -- (sampleintmid) -- (sampleintmid-|xrightlabel) node[left, legend]{Sample Interface};

  % Sample
  \coordinate[] (sample) at ($0.9*(aheight)+0.5*(awidth)$);
  \draw[<-] (sample) -- (sample-|xrightlabel) node[left, legend]{Sample Environment\\$\SI{1}{\kg} < M < \SI{50}{\kg}$};

  % Tilt Stage
  \coordinate[] (tilt) at ($0.55*(aheight)+0.78*(awidth)$);
  \coordinate[] (tiltmid) at ($(tilt)+(1, 0.5)$);
  \draw[<-] (tilt) -- (tiltmid) -- (tiltmid-|xleftlabel) node[right, legend]{Tilt Stage\\$\ang{-3} < \theta_y < \ang{3}$};

  % Spindle
  \coordinate[] (spindle) at ($0.53*(aheight)+0.33*(awidth)$);
  \coordinate[] (spindlemid) at ($(spindle)+(-1, -1.5)$);
  \draw[<-] (spindle) -- (spindlemid) -- (spindlemid-|xrightlabel) node[left, legend]{Spindle\\$\SI{1}{rpm} < \dot{\theta_z} < \SI{60}{rpm}$};

  % Center of gravity compensation
  \coordinate[] (axisc) at ($0.65*(aheight)+0.65*(awidth)$);
  \coordinate[] (axiscmid) at ($(axisc)+(1, 1.5)$);
  \draw[<-] (axisc) -- (axiscmid) -- (axiscmid-|xleftlabel) node[right, legend]{Center of gravity\\compensation system};

  % Micro Hexapod
  \coordinate[] (hexapod) at ($0.52*(aheight)+0.6*(awidth)$);
  \coordinate[] (hexapodmid) at ($(hexapod)+(1, -1.0)$);
  \draw[<-] (hexapod) -- (hexapodmid) -- (hexapodmid-|xleftlabel) node[right, legend]{Long Stroke Hexapod\\$\SI{-10}{m\metre} < T_{x y z} < \SI{10}{m\metre}$\\$\ang{-3} < \theta_{x y z} < \ang{3}$};

  % Frame
  \coordinate[] (frame) at ($0.14*(aheight)+0.65*(awidth)$);
  \draw[<-] (frame) -- (frame-|xleftlabel) node[right, legend]{Frame fixed\\on the granite};

  % X-Ray
  \draw[color=red, ->-=0.7] ($0.92*(aheight)+0.8*(awidth)$) -- node[above, color=black]{X-ray} ++(190:1.8);

  % Size of the setup
  \draw[dashed, <->, color=black!70, line width=0.5pt] ($0.03*(aheight)+0.35*(awidth)$) -- node[below, color=black, pos=0.6]{$\approx\SI{1}{m}$} ($0.14*(aheight)+0.98*(awidth)$);
  \draw[dashed, <->, color=black!70, line width=0.5pt] ($0.032*(aheight)+0.32*(awidth)$) -- node[left, color=black, pos=0.4]{$\approx\SI{1}{m}$} ($0.305*(aheight)+0.0*(awidth)$);

  % Axis
  \begin{scope}[shift={(0.0, 0.7)}]
    \draw[->] (0, 0) -- ++(195:0.8) node[above] {$x$};
    \draw[->] (0, 0) -- ++(90:0.9) node[right] {$z$};
    \draw[->] (0, 0) -- ++(-40:0.7) node[above] {$y$};
  \end{scope}

\end{tikzpicture}

Figure 2: CAD View of the ID31 end station (png, pdf, tex).

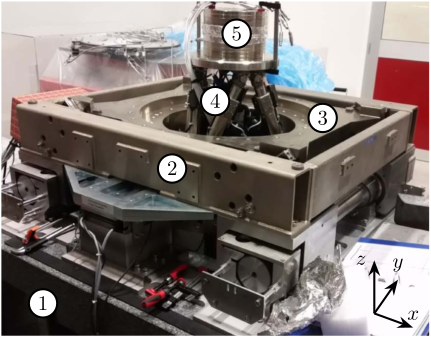

3 Fig 3: Picture of the ID31 end station

\begin{tikzpicture}
  \node[inner sep=0pt, anchor=south west] (photo) at (0,0)
  {\includegraphics[width=0.39\textwidth]{/home/thomas/Cloud/thesis/papers/dehaeze18_sampl_stabil_for_tomog_exper/tikz/img/exp_setup_photo.png}};

  \coordinate[] (aheight) at (photo.north west);
  \coordinate[] (awidth)  at (photo.south east);

  \coordinate[] (granite) at ($0.1*(aheight)+0.1*(awidth)$);
  \coordinate[] (trans)   at ($0.5*(aheight)+0.4*(awidth)$);
  \coordinate[] (tilt)    at ($0.65*(aheight)+0.75*(awidth)$);
  \coordinate[] (hexapod) at ($0.7*(aheight)+0.5*(awidth)$);
  \coordinate[] (sample)  at ($0.9*(aheight)+0.55*(awidth)$);

  % Granite
  \node[labelc] at (granite) {1};
  % Translation stage
  \node[labelc] at (trans) {2};
  % Tilt Stage
  \node[labelc] at (tilt) {3};
  % Micro-Hexapod
  \node[labelc] at (hexapod) {4};
  % Sample
  \node[labelc] at (sample) {5};

  % Axis
  \begin{scope}[shift={($0.07*(aheight)+0.87*(awidth)$)}]
    \draw[->] (0, 0) -- ++(55:0.7) node[above] {$y$};
    \draw[->] (0, 0) -- ++(90:0.9) node[left] {$z$};
    \draw[->] (0, 0) -- ++(-20:0.7) node[above] {$x$};
  \end{scope}
\end{tikzpicture}

Figure 3: Picture of the ID31 end station (png, pdf, tex).

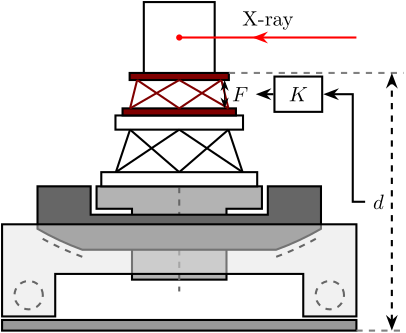

4 Fig 4: Schematic representation of the NASS added below the sample and the control architecture used

Figure 4: Schematic representation of the NASS added below the sample and the control architecture used (png, pdf, tex).

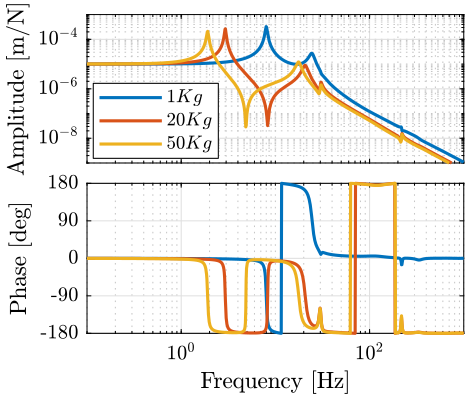

5 Fig 5: Transfer function from a force applied by the NASS to the displacement of the sample

Figure 5: Transfer function from a force applied by the NASS to the displacement of the sample (png, pdf).

6 Fig 6: General control configuration applied to the end station

\begin{tikzpicture}
  % Blocs
  \node[block={2.5cm}{2cm}] (P) {P};
  \node[block={2.5cm}{2cm}, below=1 of P, scale=0.6] (K) {\[%
      \begin{pmatrix}
        K_{T_x} & 0      & \cdots & 0            \\
        0       & \ddots & \ddots & \vdots       \\
        \vdots  & \ddots & \ddots & 0            \\
        0       & \cdots & 0      & K_{\theta_z} \\
      \end{pmatrix}
    \]};

  % Block names
  \node[above] at (P.north) {End Station};
  \node[above] at (K.north) {Controller};

  % Input and outputs coordinates
  \coordinate[] (inputw)  at ($(P.south west)!0.75!(P.north west)$);
  \coordinate[] (inputu)  at ($(P.south west)!0.25!(P.north west)$);
  \coordinate[] (outputz) at ($(P.south east)!0.75!(P.north east)$);
  \coordinate[] (outputv) at ($(P.south east)!0.25!(P.north east)$);

  % Connections and labels
  \draw[<-] (inputw) node[above left]{$w$} -- ++(-0.8, 0);
  \draw[<-] (inputu) node[above left]{$F$} -- ++(-0.8, 0) |- (K.west);

  \draw[->] (outputz) node[above right]{$z$} -- ++(0.8, 0);
  \draw[->] (outputv) node[above right]{$d$} -- ++(0.8, 0) |- (K.east);
\end{tikzpicture}

Figure 6: General control configuration applied to the end station (png, pdf, tex).

7 Fig 7: Bode plot of the loop gain for the control in the x direction

Figure 7: Bode plot of the loop gain for the control in the x direction (png, pdf, tex).

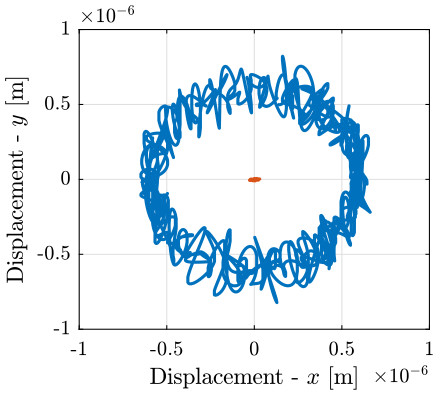

8 Fig 8: Positioning error of the sample in the x and y direction during the simulation of a tomography experiment

Figure 8: Positioning error of the sample in the x and y direction during the simulation of a tomography experiment (png, pdf).

9 Fig 1: Schematic of the Tomography Experiment (Poster)

Figure 9: Schematic of the Tomography Experiment (png, pdf, tex).
