Sensor Fusion Paper - Matlab Computation

The studied system consists of a solid positioned on top of a motorized uni-axial soft suspension.

The absolute position \(x\) of the solid is measured using an inertial sensor and a force \(F\) can be applied to the mass using a voice coil actuator.

The model of the system is represented on figure 2 where the mass of the solid is \(m = 10\ [kg]\), the stiffness of the suspension is \(k = 10^4\ [N/m]\) and the damping of the system is \(c = 10^2\ [N/(m/s)]\).

The plant \(G\) is defined on matlab and its bode plot is shown on figure 3.

m = 10;  % mass [kg]
k = 1e4; % stiffness [N/m]
c = 1e2; % damping [N/(m/s)]

G = 1/(m*s^2 + c*s + k);

We choose to use the multiplicative input uncertainty to model the plant uncertainty:

The uncertainty weight is shown in figure 4.

wI = createWeight('n', 2, 'w0', 2*pi*80, 'G0', 0.1, 'G1', 10, 'Gc', 1);

Elements in the uncertainty set \(\Pi_I\) are computed and their bode plot is shown on figure 5.

The control objective is to isolate the displacement \(x\) of the mass from the ground motion \(w\).

The specifications are described below:

• at least a factor \(10\) of disturbance rejection at \(2\ \text{Hz}\) and with a slope of \(2\) below \(2\ \text{Hz}\) until a rejection of \(10^3\)
• the noise attenuation should be at least \(10\) above \(100\ \text{Hz}\) and with a slope of \(-2\) above

These specifications can be represented as upper bounds on the closed loop transfer functions \(S\) and \(T\) (see figure 6).

We now define two weights, \(w_S(s)\) and \(w_T(s)\) such that \(1/|w_S|\) and \(1/|w_T|\) are lower than the previously defined upper bounds. Then, the performance specifications are satisfied if the following condition is valid: \[ \big|S(j\omega)\big| < \frac{1}{|w_S(j\omega)|} ; \quad \big|T(j\omega)\big| < \frac{1}{|w_T(j\omega)|}, \quad \forall \omega \]

The weights are defined as follow. They magnitude is compared with the upper bounds on \(S\) and \(T\) on figure 7.

wS = 1600/(s+0.13)^2;
wT = 1000*((s/(2*pi*1000)))^2;

Now that we have defined \(w_I\), \(w_S\) and \(w_T\), we can derive conditions for Nominal Performance, Robust Stability and Robust Performance (\(j\omega\) is omitted here for readability):

These conditions are upper bounds on the complementary filters used for control.

We plot these conditions on figure 8.

We here synthesize the complementary filters using the \(\mathcal{H}_\infty\) synthesis. The goal is to specify upper bounds on the norms of \(H_L\) and \(H_H\) while ensuring their complementary property (\(H_L + H_H = 1\)).

In order to do so, we use the generalized plant shown on figure 9 where \(w_L\) and \(w_H\) weighting transfer functions that will be used to shape \(H_L\) and \(H_H\) respectively.

The \(\mathcal{H}_\infty\) synthesis applied on this generalized plant will give a transfer function \(H_L\) (figure 10) such that the \(\mathcal{H}_\infty\) norm of the transfer function from \(w\) to \([z_H,\ z_L]\) is less than one: \[ \left\| \begin{array}{c} H_L w_L \\ (1 - H_L) w_H \end{array} \right\|_\infty < 1 \]

Thus, if the above condition is verified, we can define \(H_H = 1 - H_L\) and we have that: \[ \left\| \begin{array}{c} H_L w_L \\ H_H w_H \end{array} \right\|_\infty < 1 \] Which is almost (with an maximum error of \(\sqrt{2}\)) equivalent to:

We then see that \(w_L\) and \(w_H\) can be used to shape both \(H_L\) and \(H_H\) while ensuring (by definition of \(H_H = 1 - H_L\)) their complementary property.

Thus, if we choose \(w_L\) and \(w_H\) such that \(1/|w_L|\) and \(1/|w_H|\) lie below the upper bounds of figure 8, we will ensure the NP, RS and RP of the controlled system.

Depending if we are interested only in NP, RS or RP, we can adjust the weights \(w_L\) and \(w_H\).

omegab = 2*pi*9;
wH = (omegab)^2/(s + omegab*sqrt(1e-5))^2;
omegab = 2*pi*28;
wL = (s + omegab/(4.5)^(1/3))^3/(s*(1e-4)^(1/3) + omegab)^3;

We define the generalized plant \(P\) on matlab.

P = [0   wL;
     wH -wH;
     1   0];

And we do the \(\mathcal{H}_\infty\) synthesis using the hinfsyn command.

[Hl_hinf, ~, gamma, ~] = hinfsyn(P, 1, 1,'TOLGAM', 0.001, 'METHOD', 'ric', 'DISPLAY', 'on');

[Hl_hinf, ~, gamma, ~] = hinfsyn(P, 1, 1,'TOLGAM', 0.001, 'METHOD', 'ric', 'DISPLAY', 'on');
Test bounds:      0.0000 <  gamma  <=      1.7285

  gamma    hamx_eig  xinf_eig  hamy_eig   yinf_eig   nrho_xy   p/f
    1.729   4.1e+01   8.4e-12   1.8e-01    0.0e+00    0.0000    p
    0.864   3.9e+01 -5.8e-02#  1.8e-01    0.0e+00    0.0000    f
    1.296   4.0e+01   8.4e-12   1.8e-01    0.0e+00    0.0000    p
    1.080   4.0e+01   8.5e-12   1.8e-01    0.0e+00    0.0000    p
    0.972   3.9e+01 -4.2e-01#  1.8e-01    0.0e+00    0.0000    f
    1.026   4.0e+01   8.5e-12   1.8e-01    0.0e+00    0.0000    p
    0.999   3.9e+01   8.5e-12   1.8e-01    0.0e+00    0.0000    p
    0.986   3.9e+01 -1.2e+00#  1.8e-01    0.0e+00    0.0000    f
    0.993   3.9e+01 -8.2e+00#  1.8e-01    0.0e+00    0.0000    f
    0.996   3.9e+01   8.5e-12   1.8e-01    0.0e+00    0.0000    p
    0.994   3.9e+01   8.5e-12   1.8e-01    0.0e+00    0.0000    p
    0.993   3.9e+01 -3.2e+01#  1.8e-01    0.0e+00    0.0000    f

 Gamma value achieved:     0.9942

We then define the high pass filter \(H_H = 1 - H_L\). The bode plot of both \(H_L\) and \(H_H\) is shown on figure 12.

Hh_hinf = 1 - Hl_hinf;

• [ ] The problem here is that the High pass filter gain goes to zero at high frequency, and when inverted, it will go to infinity.

We here use analytical formula for the complementary filters \(H_L\) and \(H_H\).

The first two formulas that are used to generate complementary filters are:

where:

• \(\omega_0\) is the blending frequency in rad/s.
• \(\alpha\) is used to change the shape of the filters:
  • Small values for \(\alpha\) will produce high magnitude of the filters \(|H_L(j\omega)|\) and \(|H_H(j\omega)|\) near \(\omega_0\) but smaller value for \(|H_L(j\omega)|\) above \(\approx 1.5 \omega_0\) and for \(|H_H(j\omega)|\) below \(\approx 0.7 \omega_0\)
  • A large \(\alpha\) will do the opposite

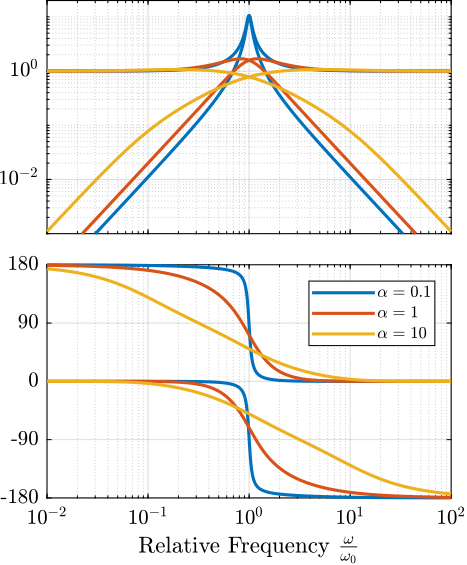

This is illustrated on figure 13. As it is usually wanted to have the \(\| S \|_\infty < 2\), \(\alpha\) between \(0.5\) and \(1\) gives a good trade-off between the performance and the robustness. The slope of those filters at high and low frequencies is \(-2\) and \(2\) respectively for \(H_L\) and \(H_H\).

The parameters \(\alpha\) and \(\omega_0\) are chosen in order to have that the complementary filters stay below the defined upper bounds.

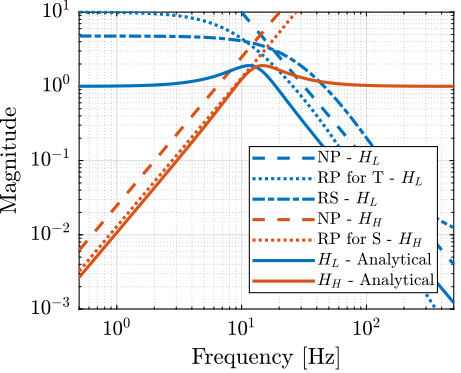

The obtained complementary filters are shown on figure 14. The Robust Performance is not fulfilled for \(T\), and we see that the RP condition as a slop of \(-3\). We thus have to use different formula for the complementary filters here.

w0 = 2*pi*13;
alpha = 0.8;

Hh2_ana = (s/w0)^2*((s/w0)+1+alpha)/(((s/w0)+1)*((s/w0)^2 + alpha*(s/w0) + 1));
Hl2_ana = ((1+alpha)*(s/w0)+1)/(((s/w0)+1)*((s/w0)^2 + alpha*(s/w0) + 1));

The following formula gives complementary filters with slopes of \(-3\) and \(3\):

The parameters are:

• \(\omega_0\) is the blending frequency in rad/s
• \(\alpha\) and \(\beta\) that are used to change the shape of the filters similarly to the parameter \(\alpha\) for the second order complementary filters

The filters are defined below and the result is shown on figure 15 where we can see that the complementary filters are below the defined upper bounds.

alpha = 1;
beta = 10;
w0 = 2*pi*14;

Hh3_ana = (s/w0)^3 * ((s/w0)^2 + (1+alpha+beta)*(s/w0) + (1+(alpha+1)*(beta+1)))/((s/w0 + 1)*((s/w0)^2+alpha*(s/w0)+1)*((s/w0)^2+beta*(s/w0)+1));
Hl3_ana = ((1+(alpha+1)*(beta+1))*(s/w0)^2 + (1+alpha+beta)*(s/w0) + 1)/((s/w0 + 1)*((s/w0)^2+alpha*(s/w0)+1)*((s/w0)^2+beta*(s/w0)+1));

The generated complementary filters using \(\mathcal{H}_\infty\) and the analytical formulas are compared on figure 16.

Although they are very close to each other, there is some difference to note here:

• the analytical formula provides a very simple way to generate the complementary filters (and thus the controller), they could even be used to tune the controller online using the parameters \(\alpha\) and \(\omega_0\). However, these formula have the property that \(|H_H|\) and \(|H_L|\) are symmetrical with the frequency \(\omega_0\) which may not be desirable.
• while the \(\mathcal{H}_\infty\) synthesis of the complementary filters is not as straightforward as using the analytical formula, it provides a more optimized procedure to obtain the complementary filters

The complementary filters obtained with the \(\mathcal{H}_\infty\) will be used for further analysis.

The controller \(K\) is computed from the plant model \(G\) and the low pass filter \(H_H\): \[ K = G^{-1} H_H^{-1} \]

As this is not proper and thus realizable, a second order low pass filter is added with a crossover frequency much larger than the control bandwidth.

omega = 2*pi*500;
K = 1/(Hh_hinf*G) * 1/((1+s/omega)*(1+s/omega+(s/omega)^2));

zpk(K)

ans =

        4.961e12 (s+9.915e04) (s^2 + 5s + 500) (s^2 + 284.6s + 2.135e04) (s^2 + 130.5s + 9887)
  --------------------------------------------------------------------------------------------------
  (s+9.914e04) (s+6283) (s^2 + 0.3576s + 0.03198) (s^2 + 413.8s + 6.398e04) (s^2 + 6283s + 3.948e07)

Continuous-time zero/pole/gain model.

The bode plot of the controller is shown on figure 17:

• two integrator are present at low frequency
• the resonance of the plant at \(3.5\ \text{Hz}\) is inverted (notched)
• a lead is added at \(10\ \text{Hz}\)

The nominal stability of the system is first checked with the allmargin matlab command.

allmargin(K*G*Hl_hinf)

allmargin(K*G*Hl_hinf)
ans =
  struct with fields:

     GainMargin: 3.86196691340257
    GMFrequency: 225.992831144248
    PhaseMargin: 34.0890006269983
    PMFrequency: 88.3632737129296
    DelayMargin: 0.0067331740287082
    DMFrequency: 88.3632737129296
         Stable: 1

The system is stable and the stability margins are good.

The bode plot of the loop gain \(L = K*G*H_L\) is shown on figure 18.

In order to check the Nominal Performance of the system, we compute the sensibility and the complementary sensibility transfer functions.

S = 1/(K*G*Hl_hinf + 1);
T = K*G*Hl_hinf/(K*G*Hl_hinf + 1);

We then compare their norms with the upper bounds on the performance of the system (figure 19). As expected, we guarantee the Nominal Performance of the system.

In order to verify the Robust stability of the system, we can use the following equivalence: \[ \text{RS} \Leftrightarrow \left| w_I T \right| < 1 \quad \forall \omega \]

This is shown on figure 20.

To check Robust Stability, we can also look at the loop gain of the uncertain system (figure 21) or the Nyquist plot (figure 22).

The Robust Performance is verified by plotting \(|S|\) and \(|T|\) for the uncertain system along side the upper bounds defined for performance. This is shown on figure 23 and we can indeed confirmed that the robust performance property of the system is valid.

For now, we have not specified any performance requirements on the input usage due to change of reference. Do limit the input usage due to change of reference, we can use a pre-filter \(K_r\) as shown on figure 1.

If we want a response time of 0.01 second, we can choose a first order low pass filter with a crossover frequency at \(1/0.01 = 100\ \text{Hz}\) as defined below.

Kr = 1/(1+s/2/pi/100);

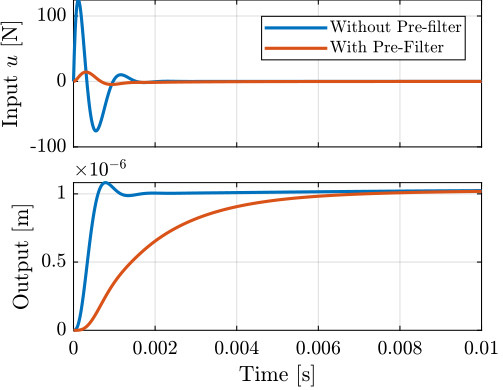

We then run a simulation for a step of \(1\mu m\) for the system without and with the pre-filter \(K_r\) (figure 24). This confirms that a pre-filter can be used to limit the input usage due to change of reference using this architecture.

t  = linspace(0, 0.01, 500);

opts = stepDataOptions;
opts.StepAmplitude = 1e-6;

u  = step((K)/(1+G*K*Hl_hinf),      t, opts);
uf = step((Kr*K)/(1+G*K*Hl_hinf),   t, opts);
y  = step((K*G)/(1+G*K*Hl_hinf),    t, opts);
yf = step((Kr*G*K)/(1+G*K*Hl_hinf), t, opts);
